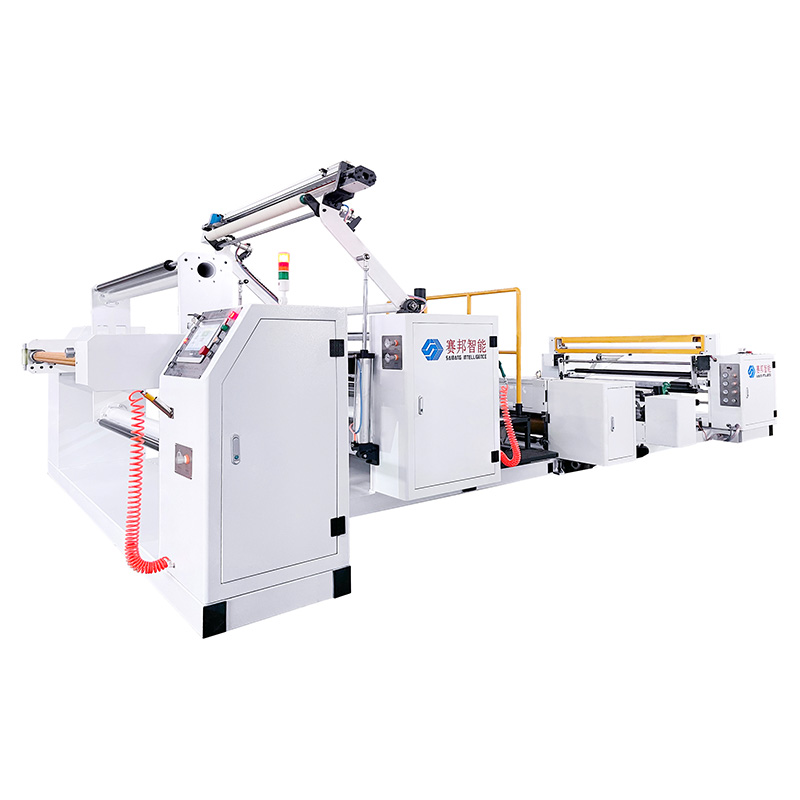

An Embossing Machine is a precision industrial equipment designed to create permanent three-dimensional patterns or perforations on material surfaces through mechanical pressure and heat application. This process transforms flat material into functional or decorative products with enhanced physical properties and aesthetic appeal.

The core function of an embossing machine involves passing materials between precisely engineered rollers containing matched pattern designs. One roller typically features raised pattern elements while the counterpart contains corresponding recessed areas. When material passes through the nip point between these rollers under controlled pressure and temperature, the pattern becomes permanently impressed into the material structure. For perforation applications, specialized needle rollers create precise micro-perforations according to predetermined patterns and densities.

Modern embossing machines incorporate advanced control systems that maintain consistent pressure ranging from 50 to 200 kN across the roller width, with temperature control accuracy within ±1°C. Operating speeds can reach up to 500 meters per minute for certain materials, with pattern registration maintained within ±0.15mm tolerance. The machines utilize hydraulic or pneumatic systems to apply precisely calibrated pressure, ensuring pattern definition remains consistent throughout production runs.

These machines process various materials including nonwoven fabrics, papers, films, and laminated composites. Material thickness handling capability typically ranges from 0.1mm to 3.0mm, with some specialized models handling up to 5.0mm thickness. The embossing depth can be precisely controlled from 0.05mm to 2.0mm depending on material properties and pattern requirements. For perforation applications, hole densities can be achieved from 50 to 800 holes per square centimeter, with hole diameters ranging from 0.1mm to 2.0mm.

Temperature control systems maintain optimal processing conditions between ambient temperature and 300°C, with some high-performance models reaching 400°C. This thermal management ensures proper material formation without degradation or pattern distortion. Cooling systems immediately stabilize the embossed pattern after formation, preserving structural integrity throughout subsequent processing stages.

Pattern change capabilities allow quick transitions between different designs, with modern machines achieving pattern roll changes in under 30 minutes. Some advanced models feature dual-roll systems that enable pattern changes without stopping production. The machines can store numerous preset recipes for different materials and patterns, ensuring repeatable quality across production batches.

Quality monitoring systems incorporate laser scanners and vision systems that continuously inspect pattern definition, perforation quality, and material integrity. These systems can detect deviations as small as 0.1mm from specified parameters and automatically make compensation adjustments. Production data is logged for traceability, recording all process parameters for each production run.

Maintenance systems monitor roller wear, bearing performance, and system alignment, ensuring consistent output quality throughout the equipment's operational life. Automated lubrication systems maintain optimal mechanical performance while reducing manual maintenance requirements.
